HDR Sky Dome¶

RayON supports two sky models: a built-in procedural gradient (zero setup required) and a full HDR environment map loaded from an .hdr file and projected as an equirectangular sky dome.

Built-in gradient sky¶

By default the sky is a vertical gradient from white at the horizon to background_color at the zenith, scaled by background_intensity (the GUI's Ambient Light):

settings:
  background_color: [0.45, 0.65, 0.95]   # zenith colour (default: [0.5, 0.7, 1.0])
  background_intensity: 0.25             # 0 = no sky light at all

This sky needs no image file and costs nothing.

HDR environment sky dome¶

An equirectangular .hdr file (Radiance RGBE format) is mapped onto an infinite sphere around the scene. Any ray that misses all geometry samples the sky dome in its direction.

The sky is chosen in the interactive modes, not in the scene file: at start-up the renderer scans resources/hdri/ (looked up as ../resources/hdri from build/) and lists every .hdr it finds in the Sky combo of the Environment & Materials section, after the built-in gradient. Numpad + / − cycle through them. The offline modes render with the gradient sky.

The mapping is derived from the ray's unit direction vector:

The resulting $ (u, v) \in [0,1]^2 $ coordinates index into the equirectangular texture, with \(v = 0\) at the north pole and \(v = 1\) at the south pole.

Switching sky in interactive mode¶

Switching takes the decode time of the file the first time (seconds for an 8K map), then the .hdrcache sidecar makes it near instant.

Downloading the HDRI files¶

The bundled HDRIs are sourced from Poly Haven under the CC0 licence. Because each file is 25–250 MB, they are not included in the repository. A download script is provided:

# Download 8K HDRIs (recommended quality)
cd resources/hdri
bash download_hdri.sh 8k

# Or lower resolutions
bash download_hdri.sh 2k
bash download_hdri.sh 4k

The six bundled environments:

A very bright sun disk in an HDR map is the classic firefly source: in sunflowers_puresky the sun covers 0.08 millisteradian, about 180 texels of the 8K map, yet carries 45 % of the sky's energy. The OptiX interactive mode samples the sky directly (see Sky importance sampling below), so the sun lights diffuse surfaces through shadow rays and casts proper shadows instead of being found by chance. The CUDA interactive mode has no sky sampling: a diffuse bounce hits the sun once in about 40 000 samples, each hit worth tens of thousands, and only the luminance clamp (a fixed ceiling of 20 while the camera moves, a growing one when still, see Lights & Shadows) keeps the speckle in check. It never converges there: the clamp grows with the square root of the sample count and the hits arrive in proportion to it, so the speckle keeps a constant amplitude.

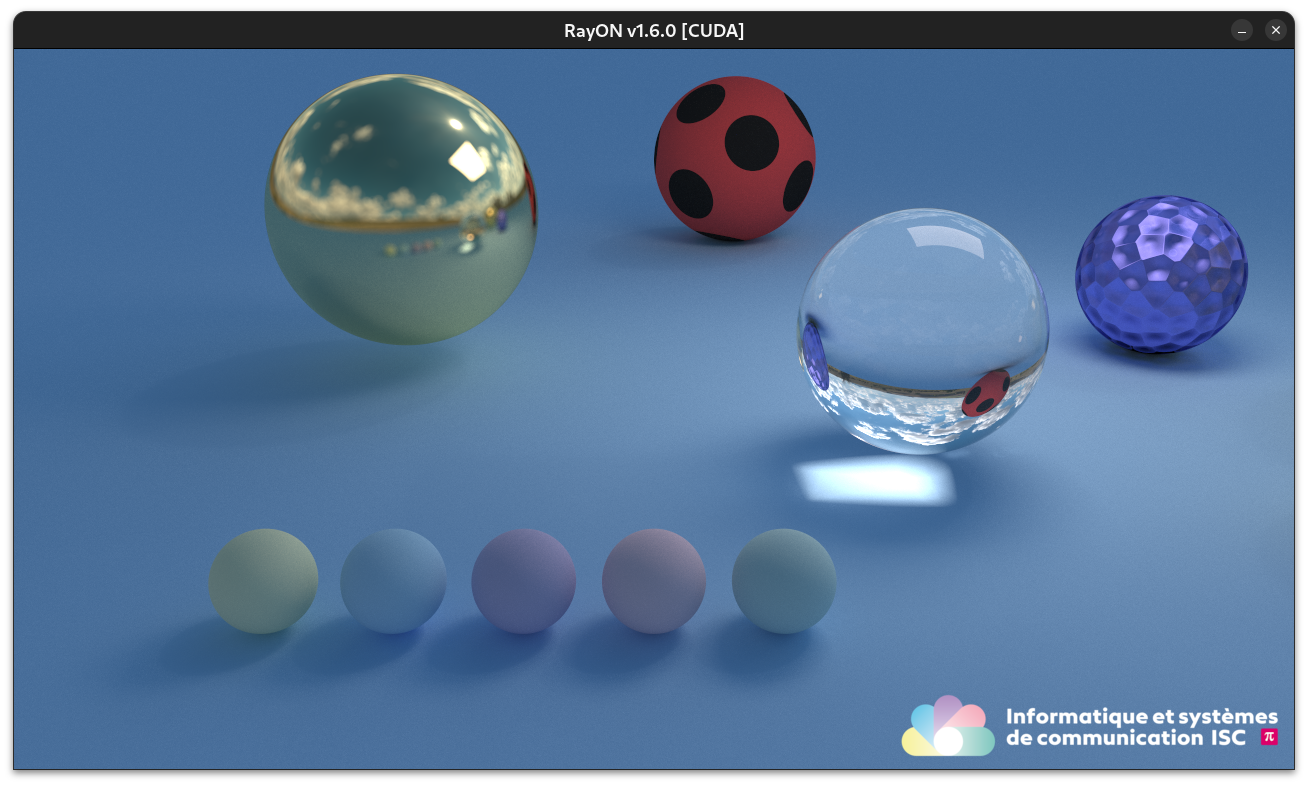

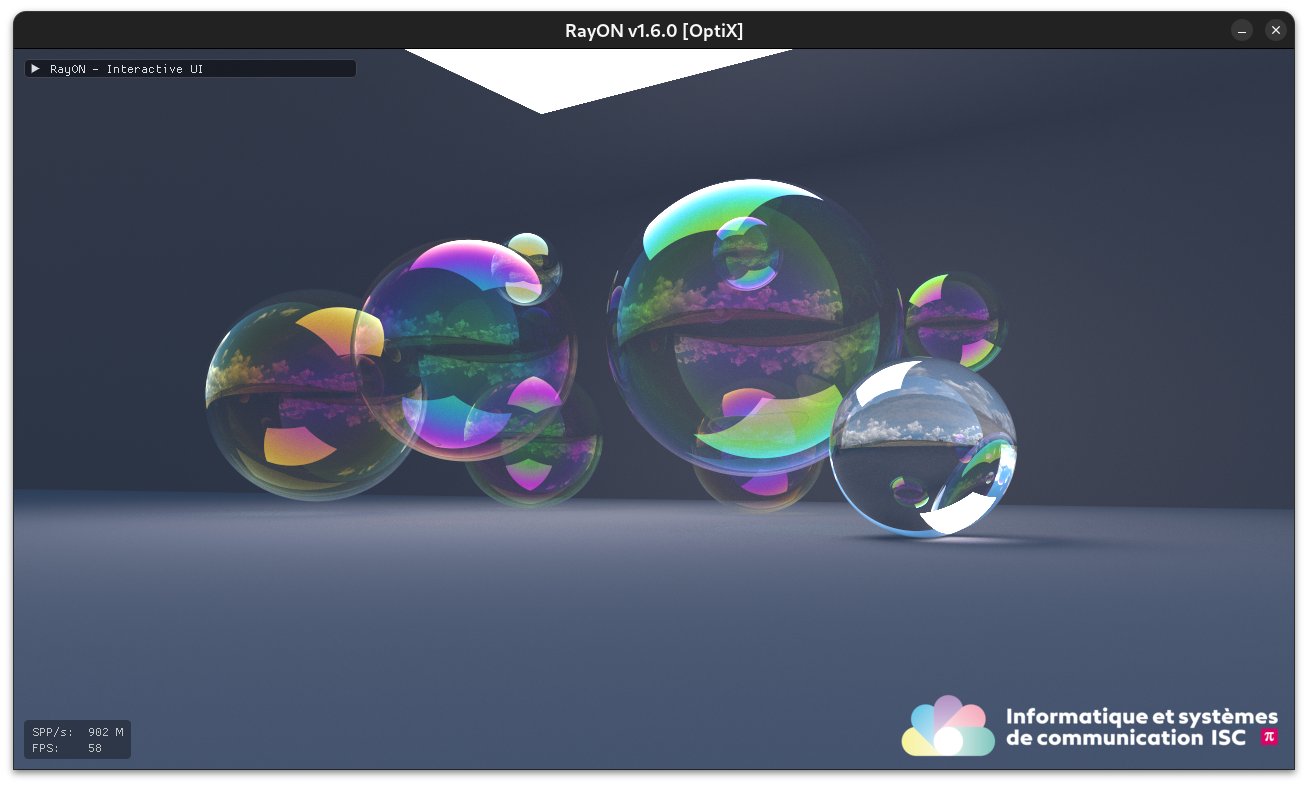

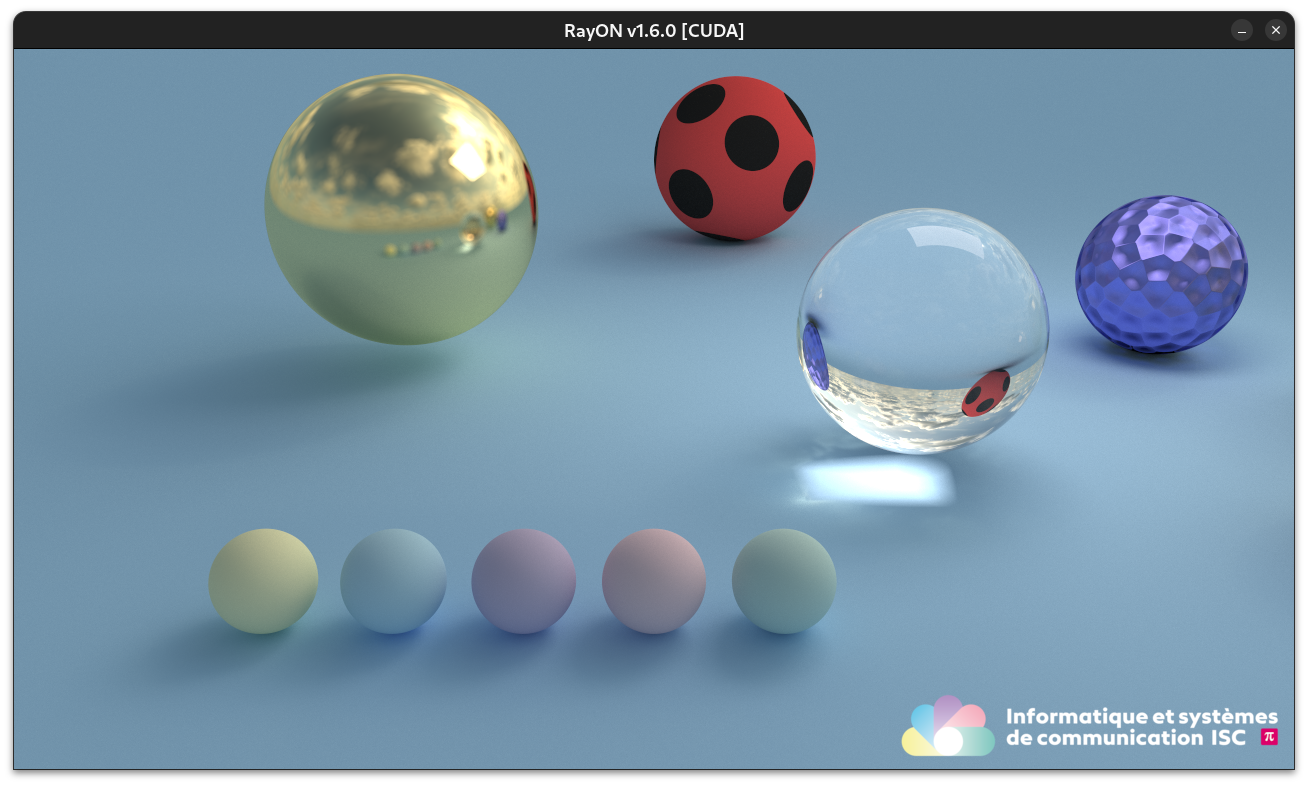

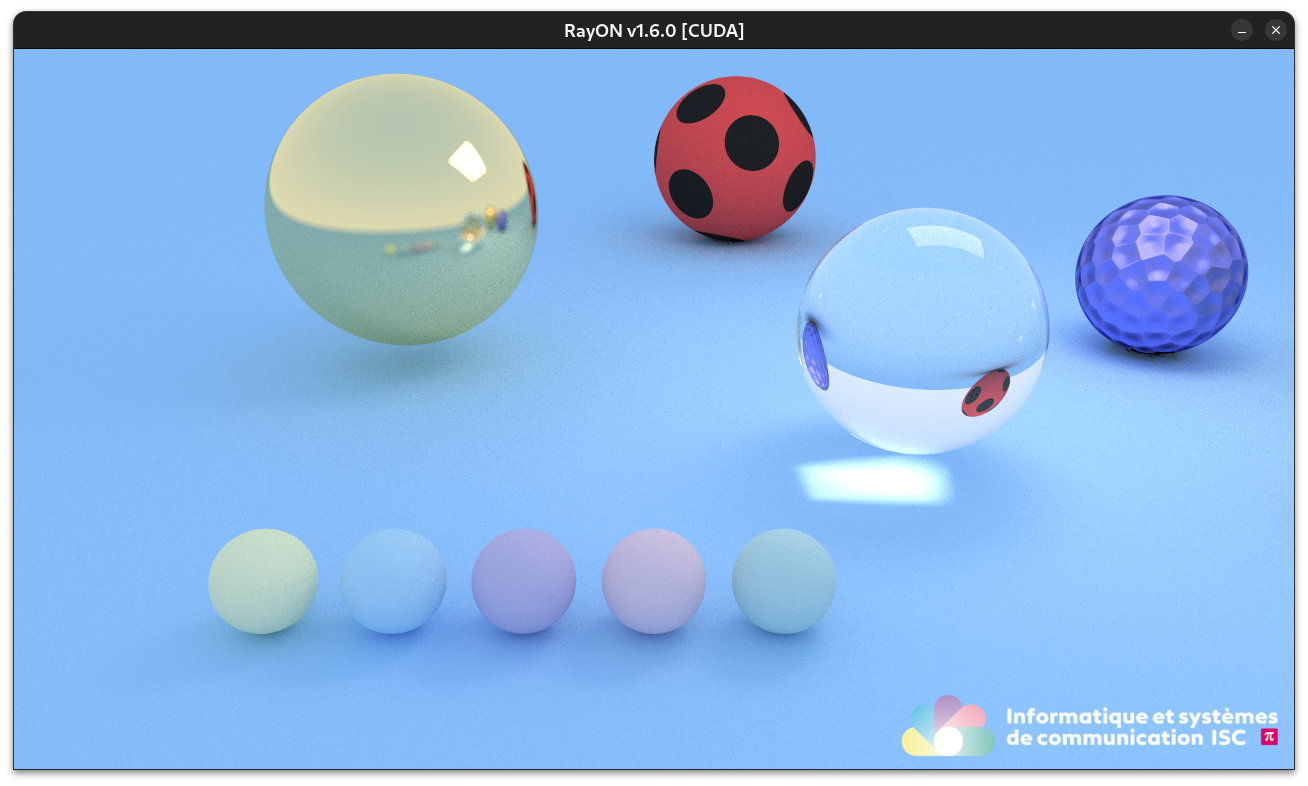

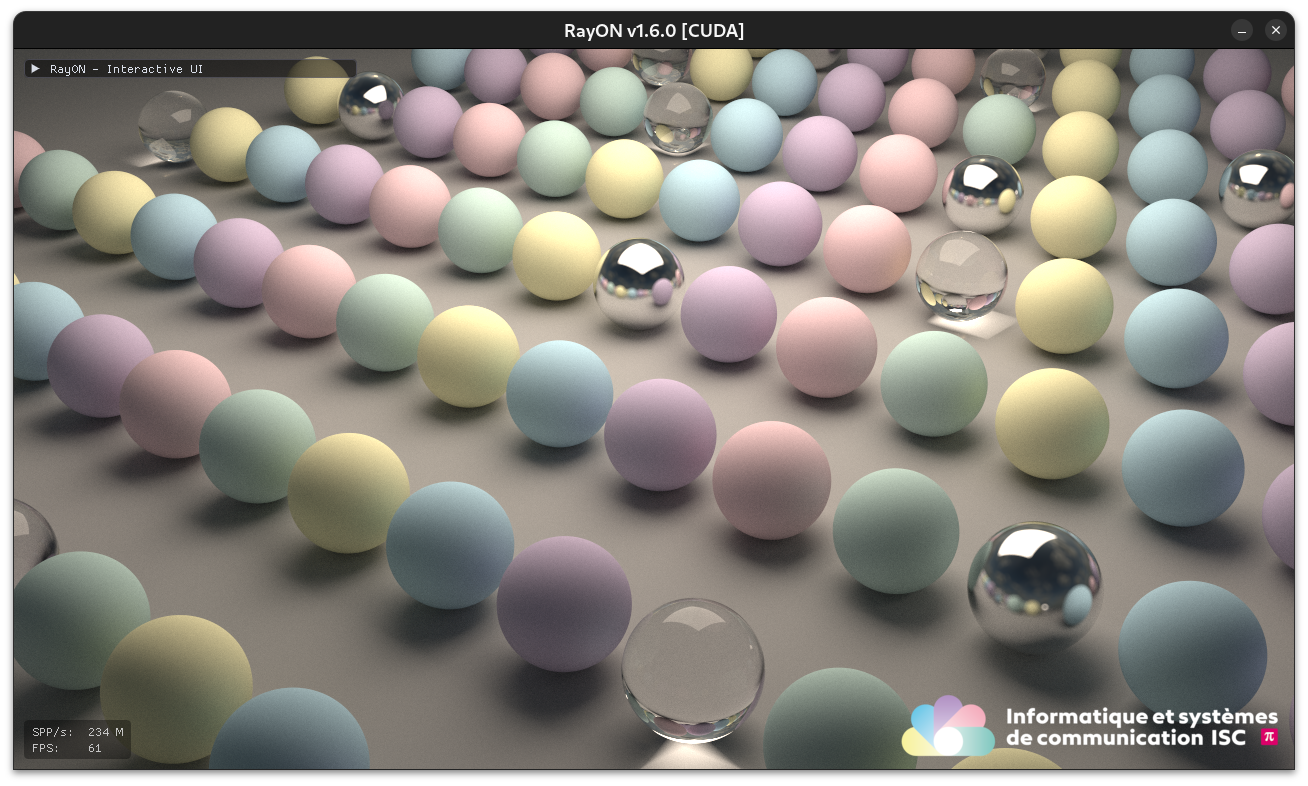

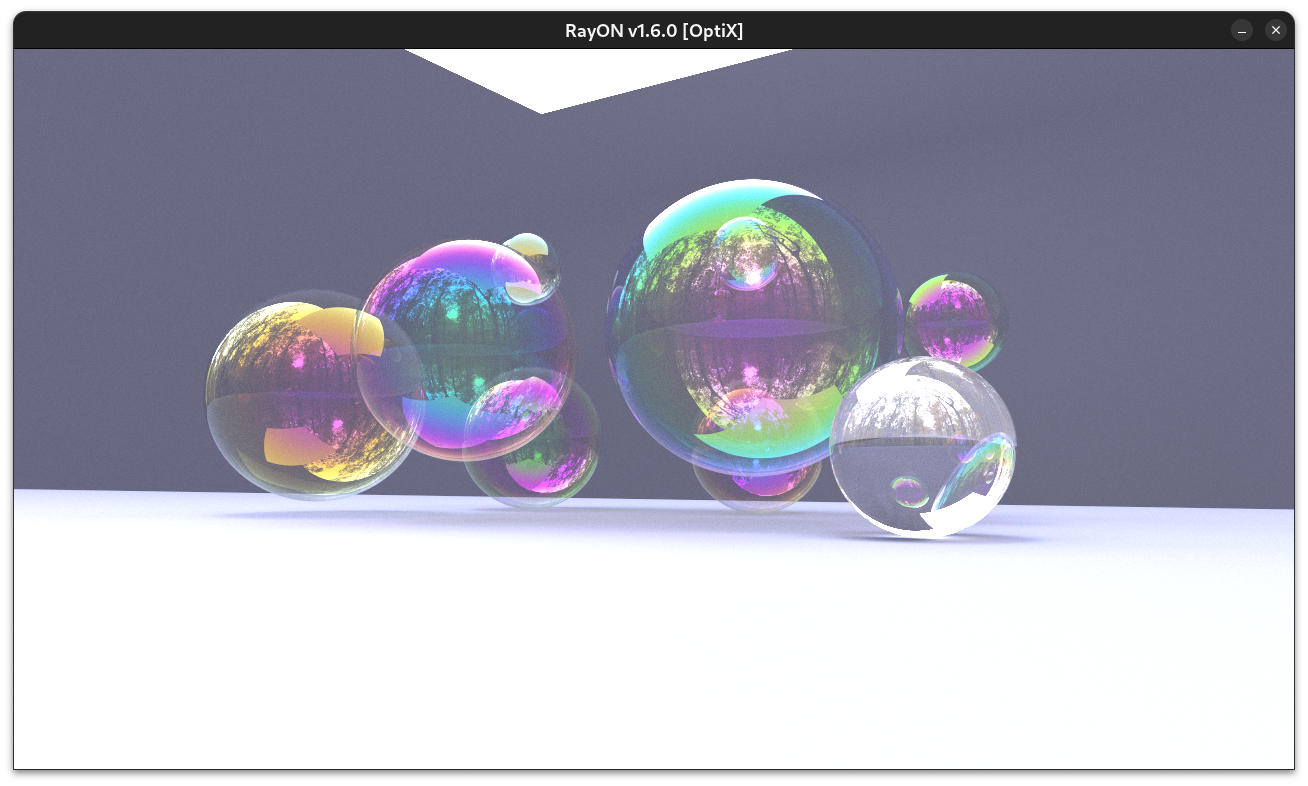

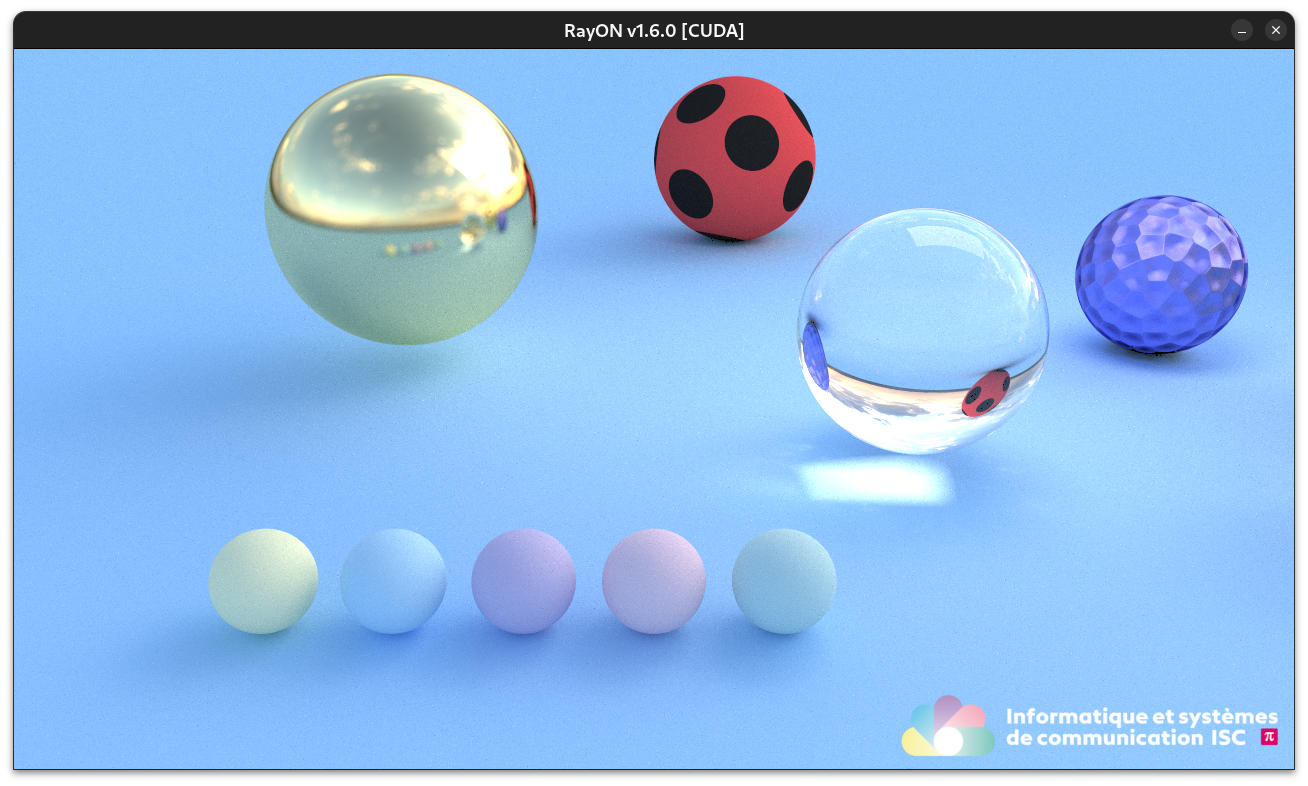

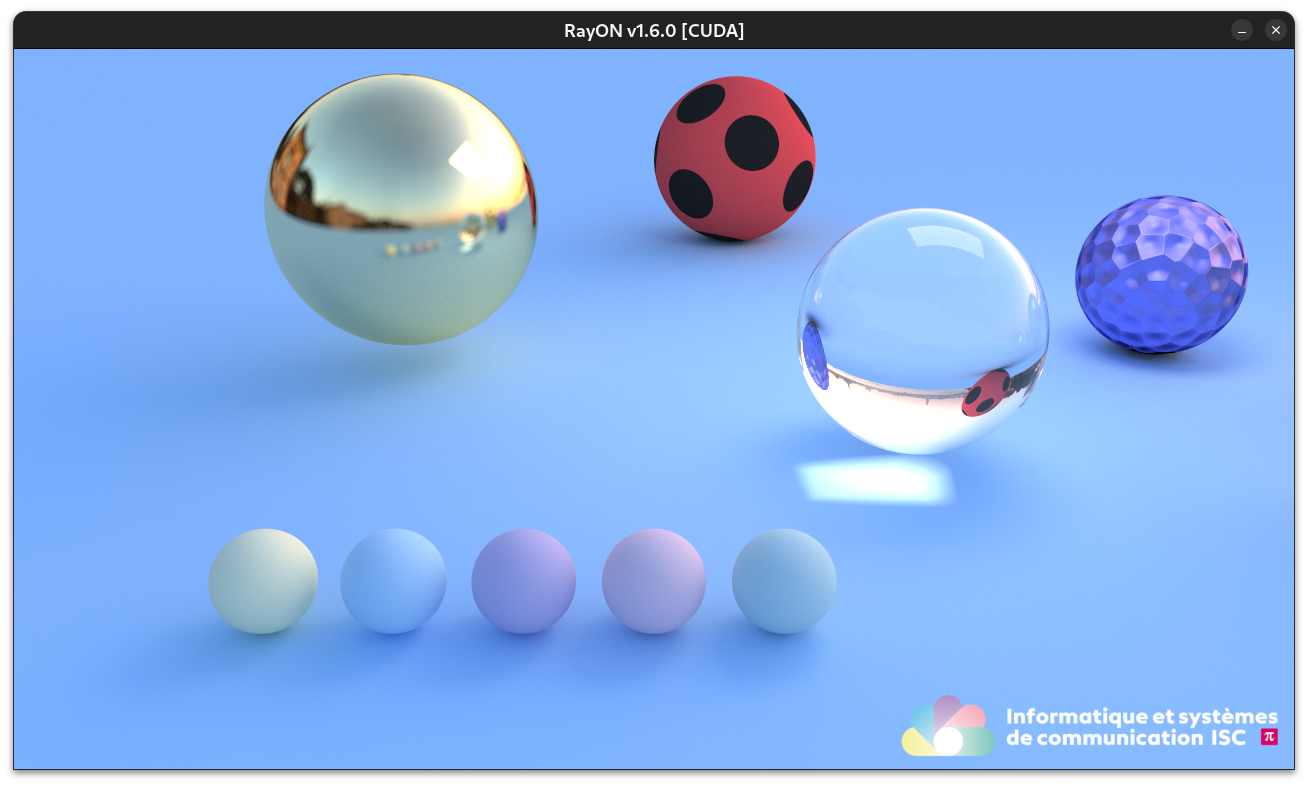

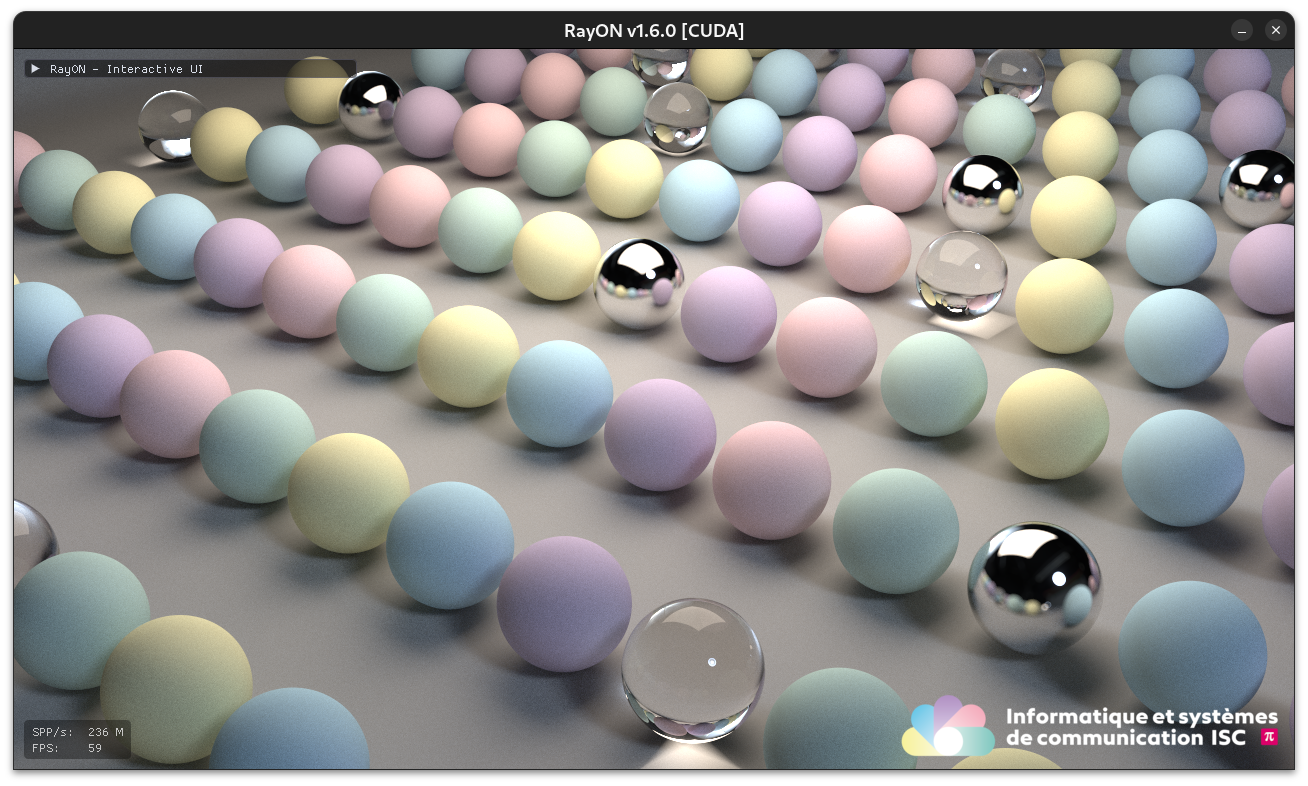

Gallery¶

Technical implementation¶

Sky importance sampling¶

OptiX interactive mode only. When an HDR map is uploaded, buildEnvSamplingTables() (optix_renderer.cu) reduces it to a grid of at most 2048 × 1024 cells (a 4 × 4 texel box on an 8K map) weighted by luminance × sin θ, the solid angle of a lat-long cell, and builds a 2D distribution over it: a marginal CDF over the rows and one conditional CDF per row. The tables are accumulated in double precision and stored as float, so the probability of a cell is exactly the difference of two consecutive CDF entries, on the sampling side as on the pdf side.

The sky then takes part in next-event estimation like a light: sample_env_optix() picks a row from the marginal CDF, a cell from that row, a uniform direction inside the cell and returns its radiance with the solid-angle pdf

where \(2\pi^2 \sin\theta\) is the Jacobian of the lat-long mapping. When the scene also has emitters, half of the NEE samples go to the sky and half to the light list, and every pdf carries that selection probability. A BSDF-sampled ray that escapes to the sky is weighted by the power heuristic against env_pdf_optix() of its direction, exactly as an emitter hit is weighted against the light pdf, so the sun is never counted twice. Samples drawn below the surface skip the shadow ray. Everything is tied to the Enable MIS toggle: with MIS off the sky is left to BSDF sampling, as before.

Measured on the default scene under sunflowers_puresky after 30 s at 720p: the speckle count drops by a factor of 30 and the image is 20 % brighter, the sun's share that the luminance clamp was holding back. The remaining dots are sun caustics: the sun reaching a diffuse surface through the glass sphere or off the metal sphere, paths that no light sampling can reach (the same scene with those two spheres made diffuse shows none). They are held down by the indirect clamp. The cost is the shadow ray of each diffuse bounce (about a quarter of the frame rate on that scene, which had no emitter and therefore no shadow rays before).

float16 GPU texture¶

The .hdr file is decoded from Radiance RGBE (four bytes per pixel) to 32-bit float triplets by stb_image, then each channel is converted to IEEE 754 float16 (half precision). The resulting four-channel half-float image is uploaded to a cudaTextureObject_t with format:

cudaChannelFormatDesc{16, 16, 16, 16, cudaChannelFormatKindFloat}

CUDA hardware automatically promotes the fp16 values to fp32 on tex2D<float4> fetch — no shader-side conversion is needed.

Memory impact:

Binary disk cache (.hdrcache)¶

Loading and decoding an 8K .hdr file (≈ 200 MB on disk) takes several seconds. On subsequent launches, the renderer writes a binary sidecar next to the .hdr file (e.g. venice_sunset_8k.hdr.hdrcache) and reads it on the next run.

A .hdrcache file is a compact binary blob with a 24-byte header followed by the raw fp16 pixel data — no decompression or format conversion needed. Typical time savings: 5–10× faster loads compared to re-decoding the RGBE source.

┌─────────────────────────────────┐
│  magic  │  version  │  w  │  h  │  (16 bytes)
│            source_size          │  (8 bytes, staleness check)
├─────────────────────────────────┤
│  width × height × 4 × uint16_t │  (raw fp16 pixels, RGBA order)
└─────────────────────────────────┘

The source file's byte-size is stored in the header. If the .hdr file is replaced or modified (size changes), the cache is automatically invalidated and regenerated.

To skip the cache entirely (e.g. for diagnostics):

./rayon --no-hdr-cache --scene ../resources/scenes/default_scene.yaml

fp16 clamping¶

HDR scene radiance values can exceed the fp16 finite range (65 504). Values above this threshold are clamped to ±65504 before storage — ensuring the GPU texture never receives ±∞, which would propagate as NaN during path-tracing arithmetic and produce black "firefly" pixels.
