Ray Tracing & Path Tracing¶

This page covers the mathematical foundations that every renderer in RayON is built on. Understanding these concepts makes the rest of the code much more readable.

The ray¶

Everything starts with a ray — a half-line defined by an origin point and a direction vector:

\[ \mathbf{r}(t) = \mathbf{o} + t\,\mathbf{d}, \quad t > 0 \]

Symbol	Meaning
\(\mathbf{o}\)	Ray origin (camera position, or last bounce hit point)
\(\mathbf{d}\)	Ray direction (unit vector)
\(t\)	Parameter — how far along the ray we are

Finding where a ray hits an object means solving for \(t\) in the intersection equations for spheres, planes, triangles, etc.

// From data_structures/ray.hpp
struct Ray {
    Vec3 origin;
    Vec3 direction;

    Vec3 at(double t) const { return origin + t * direction; }
};

The rendering equation¶

The rendering equation (Kajiya, 1986) describes how light accumulates at a surface point:

\[ L_o(\mathbf{x}, \omega_o) = L_e(\mathbf{x}, \omega_o) + \int_{\Omega} f_r(\mathbf{x}, \omega_i, \omega_o)\, L_i(\mathbf{x}, \omega_i)\, (\omega_i \cdot \hat{n})\, d\omega_i \]

Symbol	Meaning
\(L_o\)	Outgoing radiance (what the camera "sees")
\(L_e\)	Emitted radiance (non-zero only for light sources)
\(f_r\)	BRDF — how the surface scatters light
\(L_i\)	Incoming radiance (recursive — depends on the scene)
\(\omega_i \cdot \hat{n}\)	Cosine foreshortening — Lambert's law
\(\Omega\)	Hemisphere of directions above the surface

This integral cannot be solved analytically for arbitrary scenes, so we use Monte Carlo estimation.

Monte Carlo path tracing¶

Idea: estimate the integral by averaging many random samples.

For a single pixel, we fire \(N\) rays. Each ray bounces through the scene, collecting radiance at each interaction. The pixel colour is the average of all the paths:

\[ L_o \approx \frac{1}{N} \sum_{k=1}^{N} \frac{f_r(\omega_k) \cdot L_i(\omega_k) \cdot \cos\theta_k}{p(\omega_k)} \]

where \(p(\omega_k)\) is the probability density of sampling direction \(\omega_k\) (see Hemisphere Sampling).

The bounce loop¶

// Simplified inner loop (all renderers share this logic)
Vec3 throughput = Vec3(1.0); // accumulated attenuation
Vec3 result     = Vec3(0.0); // accumulated emission

for (int depth = 0; depth < MAX_DEPTH; ++depth) {
    HitRecord rec;
    if (!scene.hit(ray, rec)) {
        result += throughput * background_color;
        break;
    }

    // Emitted light from this surface
    result += throughput * rec.material.emitted();

    // Scatter the ray according to the material BRDF
    Ray scattered;
    Vec3 attenuation;
    if (!rec.material.scatter(ray, rec, attenuation, scattered))
        break; // ray absorbed — path ends

    throughput *= attenuation;
    ray = scattered;
}
return result;

Each iteration either:

Misses all geometry → adds background radiance, stops.
Hits a light → adds emission, path terminated (light doesn't scatter).
Hits a surface → multiplies throughput by the BRDF's attenuation, scatters the ray, continues.

Why does noise decrease with more samples?¶

A Monte Carlo estimator converges at rate \(\mathcal{O}(1/\sqrt{N})\):

9 samples → 3× noise reduction vs 1 sample
100 samples → 10× reduction
10 000 samples → 100× reduction

This is why interactive mode starts at 8 SPP (noisy but immediately responsive) and accumulates progressively: the image always improves with time.

Sample convergence¶

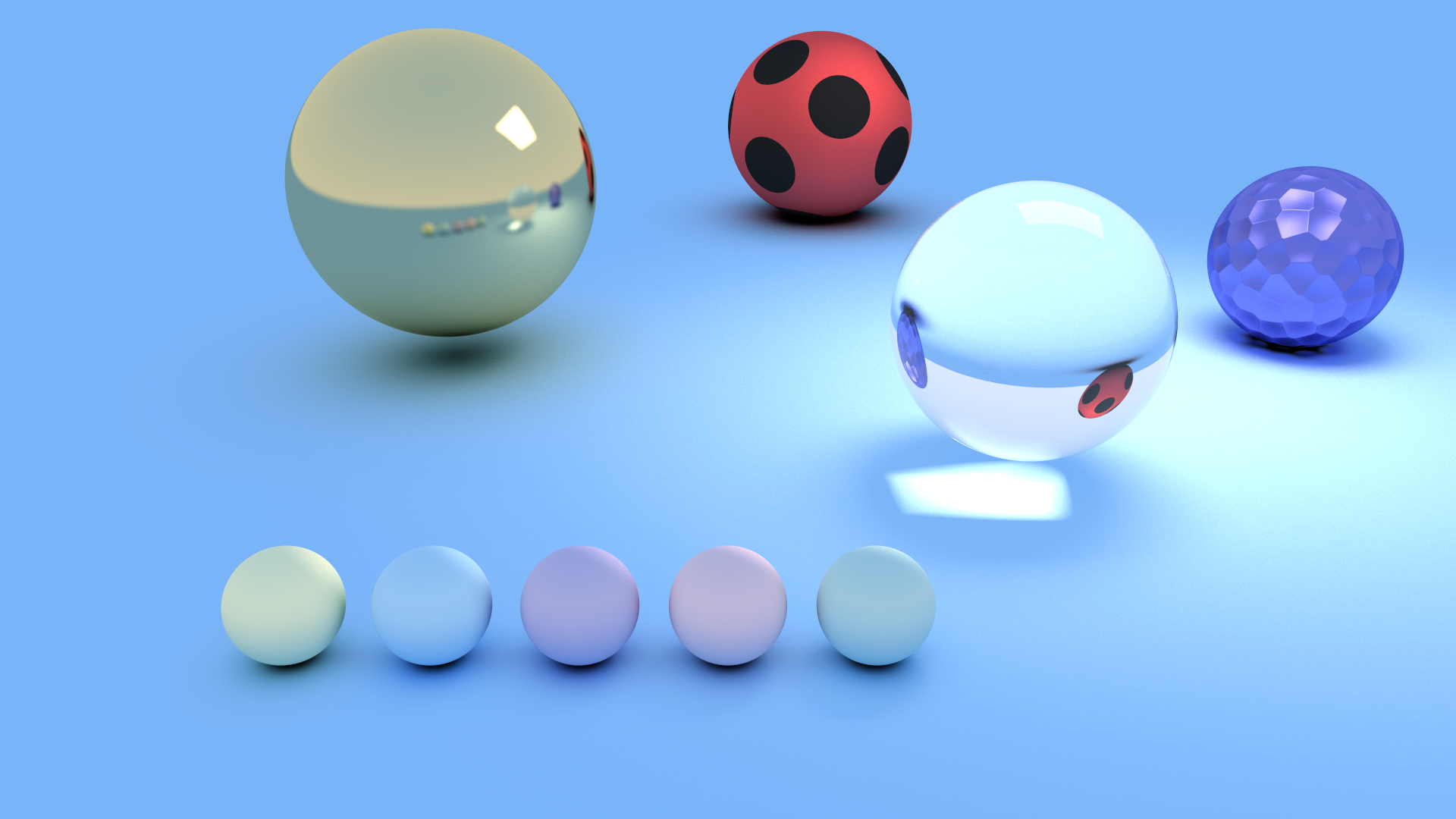

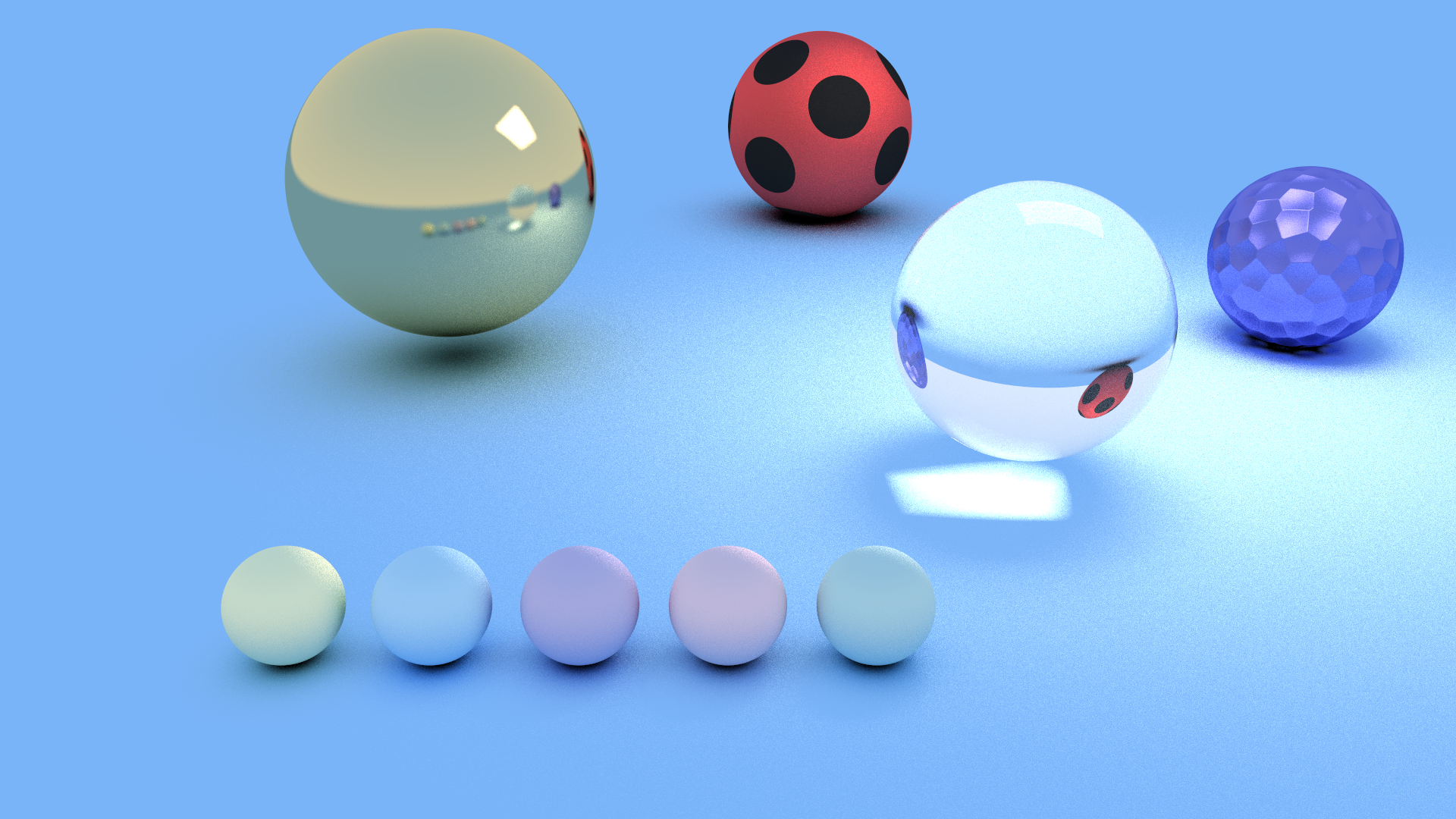

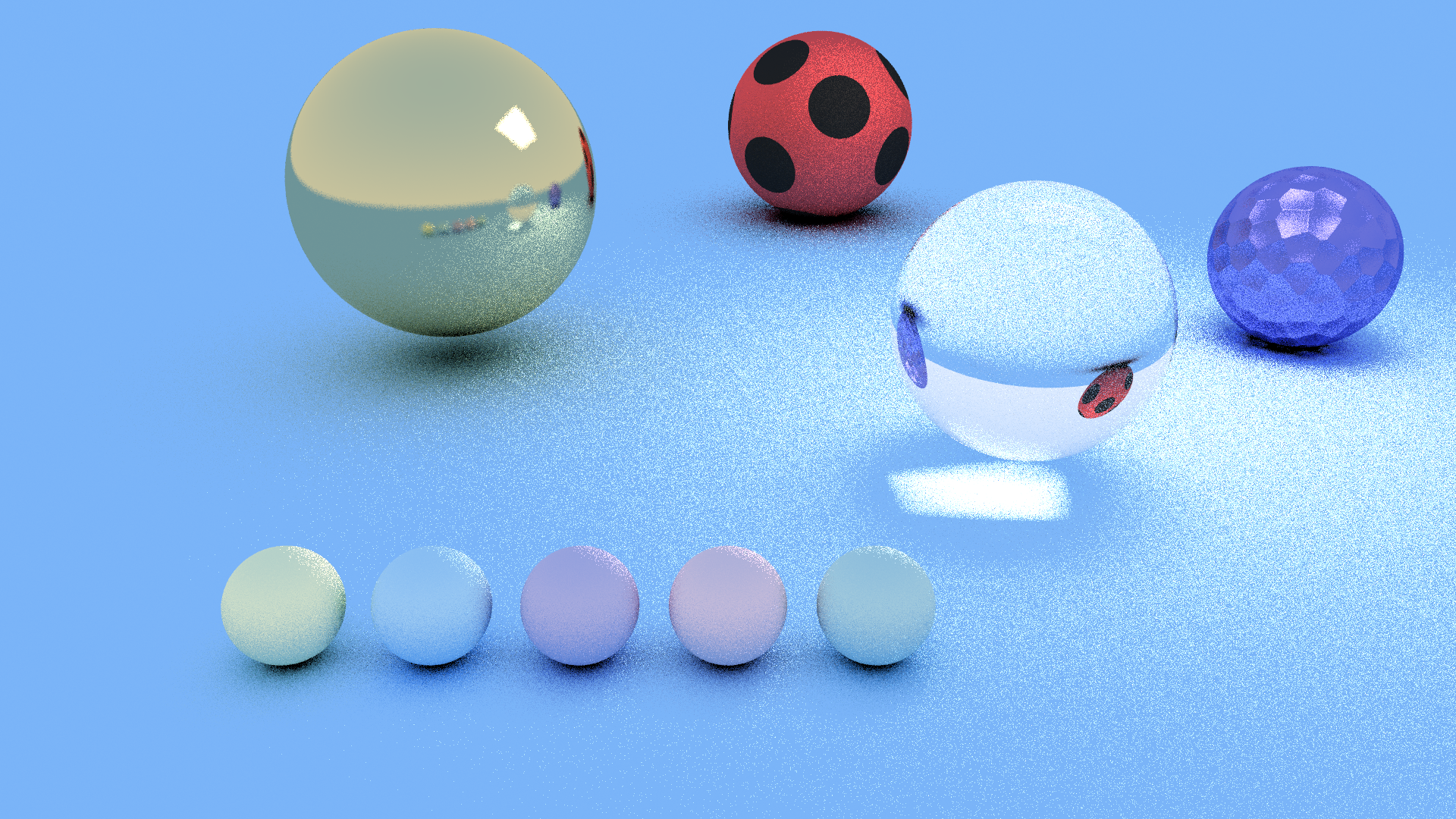

The same viewpoint rendered at successive sample counts, illustrating convergence:

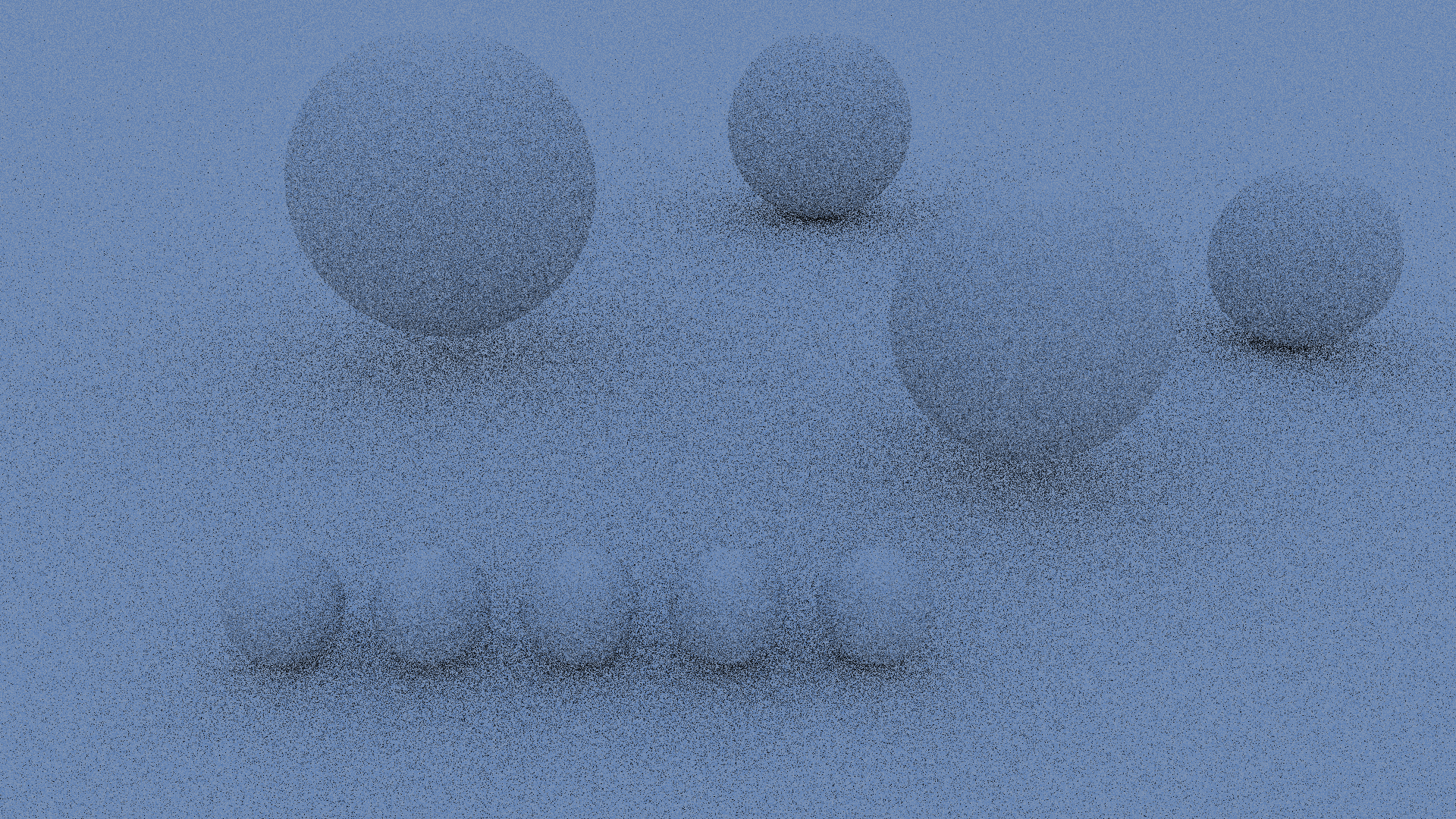

The image at 1 SPP stores one random path per pixel — it is essentially pure noise. At 8 SPP the shapes are recognisable. Accurate shadows and inter-reflections appear around 128–256 SPP.

Russian roulette path termination¶

Carrying a path all the way to MAX_DEPTH bounces even when the throughput is near zero wastes compute time. Russian roulette terminates paths probabilistically:

// After each bounce, proportional to throughput brightness
float p = max(throughput.r, max(throughput.g, throughput.b));
if (curand_uniform(&rng) > p)
    break; // terminate — no bias introduced
throughput /= p; // compensate to stay unbiased

This is enabled from bounce 1 in RayON and has no effect on the mean of the estimator (it only changes variance). The result is that cheap paths (low attenuation) are terminated early, and the saved compute is reinvested into paths that matter.

Anti-aliasing through jittered sampling¶

Each sample for a given pixel uses a different, randomly offset ray direction within the pixel's solid angle. Averaging \(N\) such samples simultaneously:

Converges to the true pixel integral (anti-aliasing).
Produces smooth edges without an explicit AA pass.

// Per-sample sub-pixel jitter
double u = (col + random_double()) / (image_width  - 1);
double v = (row + random_double()) / (image_height - 1);
Ray ray = camera.get_ray(u, v);

This is why increasing SPP both reduces noise and improves edge sharpness.
